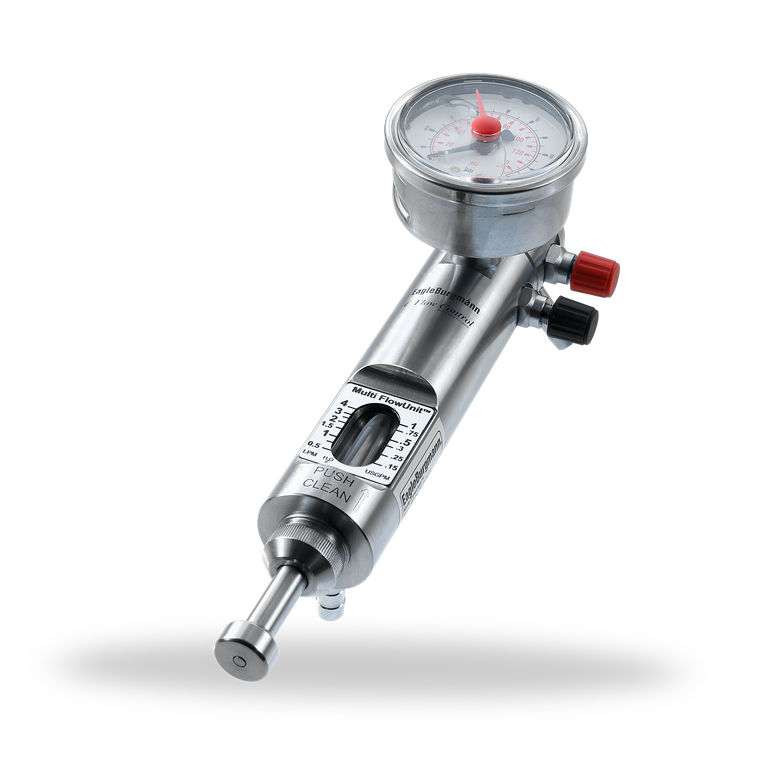

MFU Multi Flow Unit
MFU Multi Flow Unit
Features
MFU-MP: for single seals with flush
MFU-MQ: for seals with quench
MFU-MD: for double seals
These are available for different indicated flow ranges and with numerous system components (e.g. mounting supports, stands, hoses, alarm sensors, etc.) and other material combinations.
Circulation in accordance with API 682 Plan 32, Plan 54, Plan 62.
Advantages
- Economical supply system
- Optimized sealing water management
- Reduced costs for fresh water and waste water
- Easy operation and cleaning even during operation
- Safe operation even in case of pressure changes
- Quick detection of seal failures
Operating range
Max. operating temperature: 85 °C (185 °F)
Indicated flow range (pressure drop):
0.1 ... 2 l/min. (≤0.1 bar (1.5 PSI) at 2 l/min)
0.5 ... 4 l/min. (0.1 bar (1.5 PSI) at 4 l/min.)
1 ... 8 l/min. (≥1 bar (15 PSI) at 8 l/min.)
8 ... 15 l/min. (available on request)
Recommended applications
- Pulp and paper industry
- Food and beverage industry
- Water and waste water technology
- Chemical industry
- Process industry
Functional description
Product variants
| Designation | MFU-MP | MFU-MQ | MFU-MD |
|---|---|---|---|
| Pressure gauge | ■ | ■ | |
| Pressure control valve | ■ | ||
| Flow rate (l/min.) | 1 ... 8 | 1 ... 8 | 1 ... 8 |
| Allowable pressure | 25 bar (363 PSI) (*) | 25 bar (363 PSI) (*) | |
| Allowable temperature | 85 °C (185 °F) | 85 °C (185 °F) | 85 °C (185 °F) |
| Accuracy | ±3 ... 5 % | ±3 ... 5 % | ±3 ... 5 % |
| Housing material | AISI 304 | AISI 304 | AISI 304 |
| Metal parts | AISI 316 AISI 304 |
AISI 316 AISI 304 |
AISI 316 AISI 304 |
| Sight-glass | Grilamid® TR 55 | Grilamid® TR 55 | Grilamid® TR 55 |
| Seals | NBR | NBR | NBR |
| Process connections | Hose nozzles for 10 mm hose |
Hose nozzles for 10 mm hose |
Hose nozzles for 10 mm hose |
Other versions with alternative connections, higher pressure and/or higher flow rates on request. (*) Depending on range of selected pressure gauge (available range 10, 16, 25 bar)
